5G CPE/GATEWAY

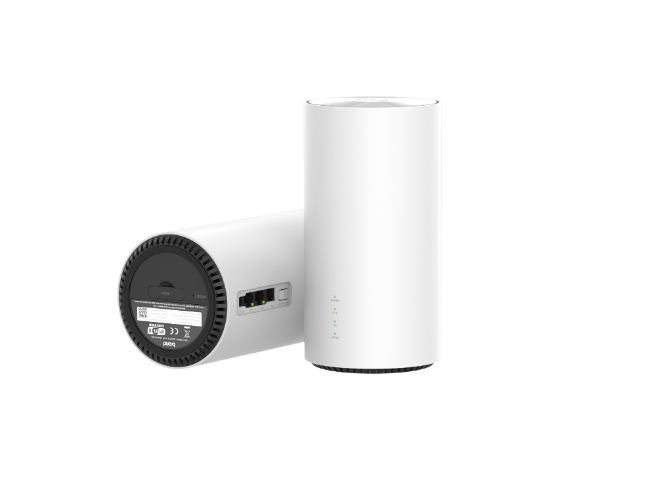

5G Gateway
5G Gateway
  • PERFORMANCE
    CPU: Qualcomm® X72
    Peak download speed: Up to 4.4 Gbps.
    Peak upload speed: Up to 2.6 Gbps.
  • POWER
    CHARGER: USB Type-C
    DC 12V2A
  • DISPLAY
    4x LED Indicator Lights
  • DESIGN
    DIMENSIONS: 185mm X 100mm diameter
    COLORS: Dark Gray, White
  • REGIONS SUPPORTED
    NA, Japan, EU
  • EXPERIENCE
    Web Based Setup UI
    App Based UI
    AWS/MDM Configurable
    4ff or E sim configurable(SGP-32)
    IOT Gateway
    Steerable Antenna
    SD-WAN
    Multi-operator capable
    TR69 client
  • CONNECTIVITY
    IEEE 802.11 b/g/n/ac/ax/be
    2.4, 5GHz & Wi-Fi 7
    4x4 MiMO (Waikiki)
    Support up to 256 connected devices simultaneously
    Wi-Fi Mesh enabled
    2x LAN Port
    1x WAN Port
  • ROW RF BANDING
    5G:1/3/5/7/8/20/26/28/29/30/38/40/41/48/
    66/71/77/78/79
    4G:1/3/5/7/8/19/20/25/26/28/30/32/66/71
    (TDD)/38/39/40/41/42/43/48
    3G: 1/5/6/8/19
